Drilling Fluids Linear Motion Shale Shake Used For Mud Cleaner/Desilter

Brief introduction about shale shaker

The shale shakers were solely designed and manufactured by our company but with the advantages of same international well-known products,containing more than one patents.

The shale shakers being provided with high vibration intensity , adjustable-pitch ,compact, reliable ,behavior and cost effective ,is known as a competitive product in the international market.

1. Usage and Applicability

Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.

The shale shaker screens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next separating equipment.

the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.

2. Structure and Operating Principle

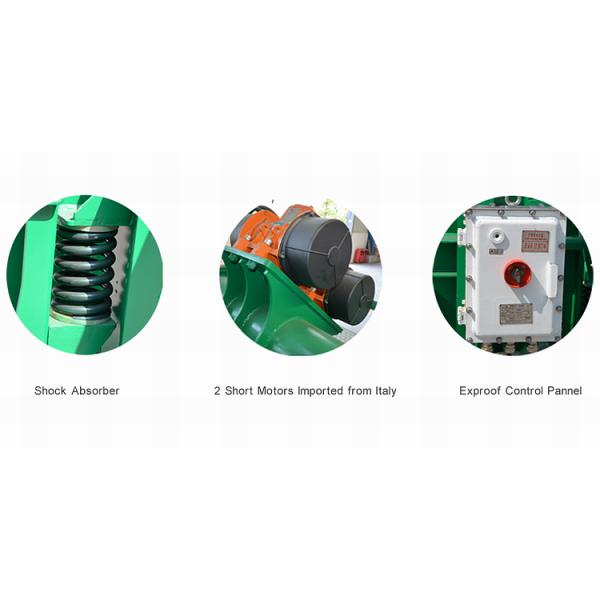

The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.

Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.

3.Main Technical Parameters
